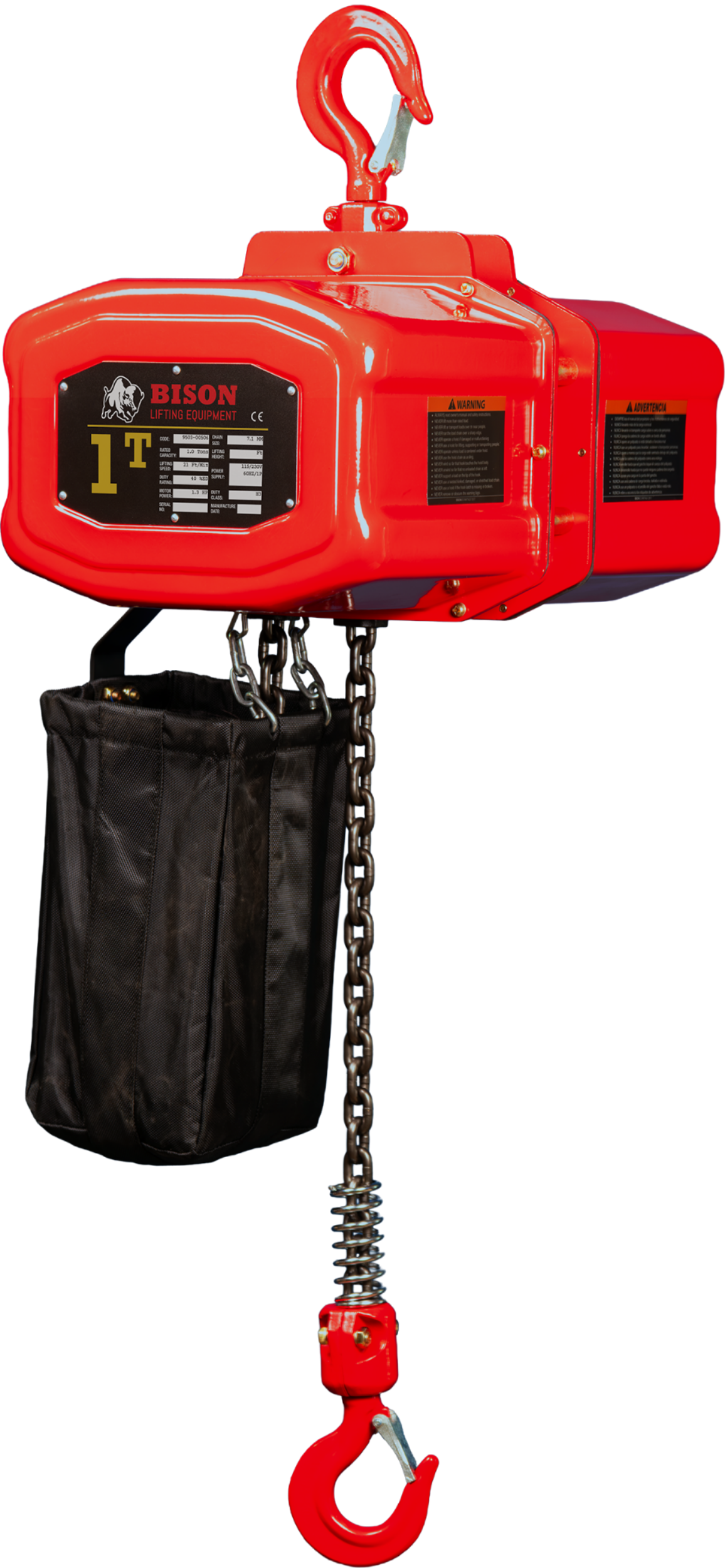

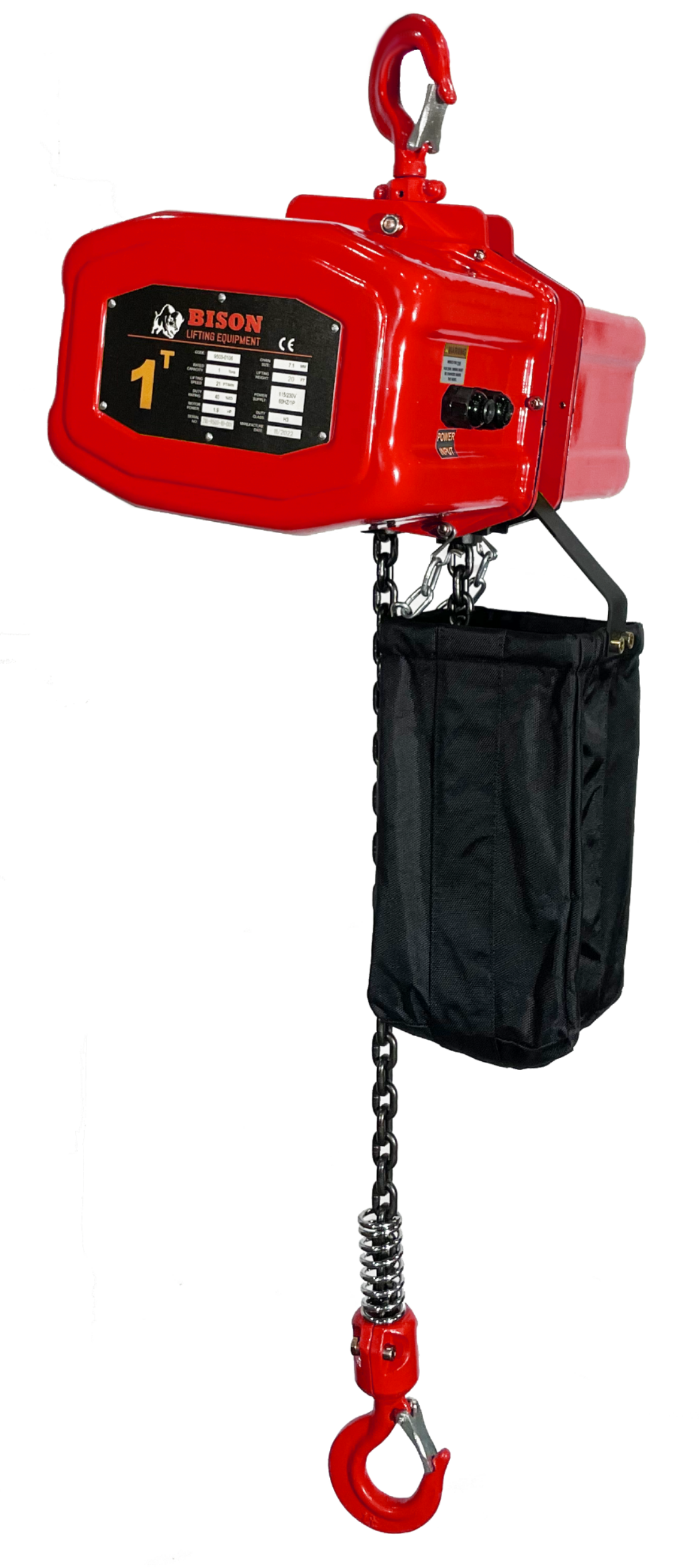

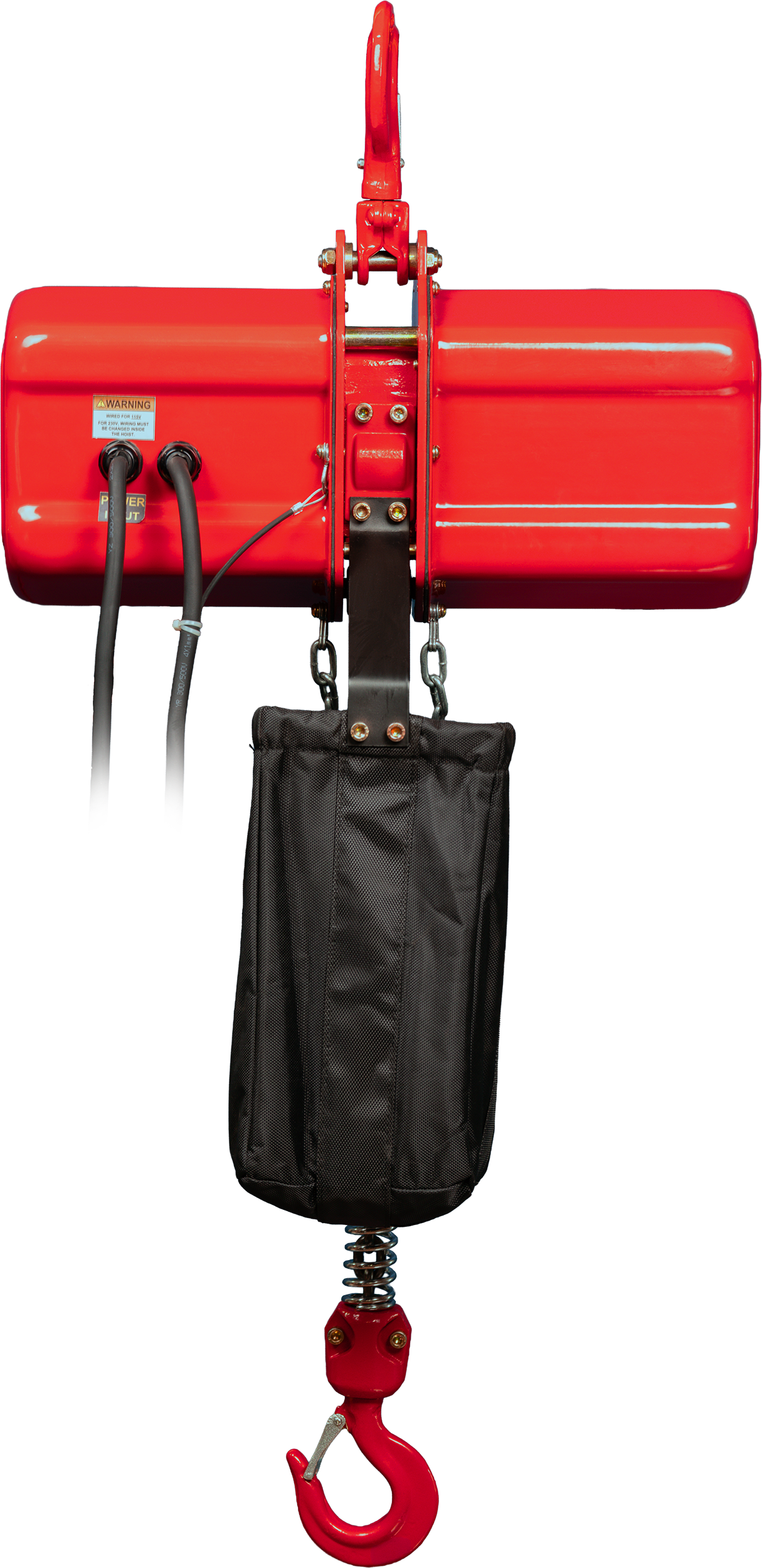

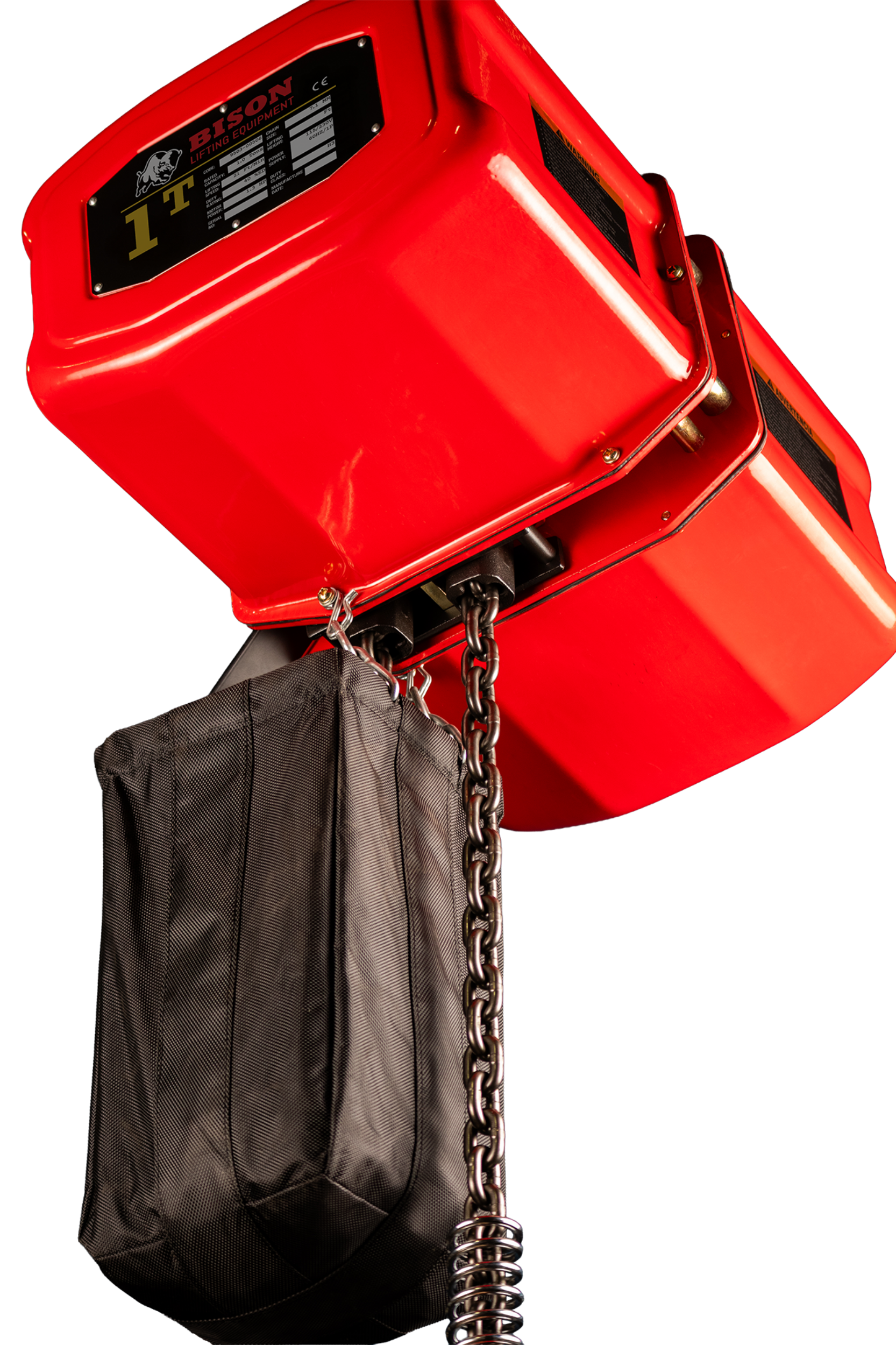

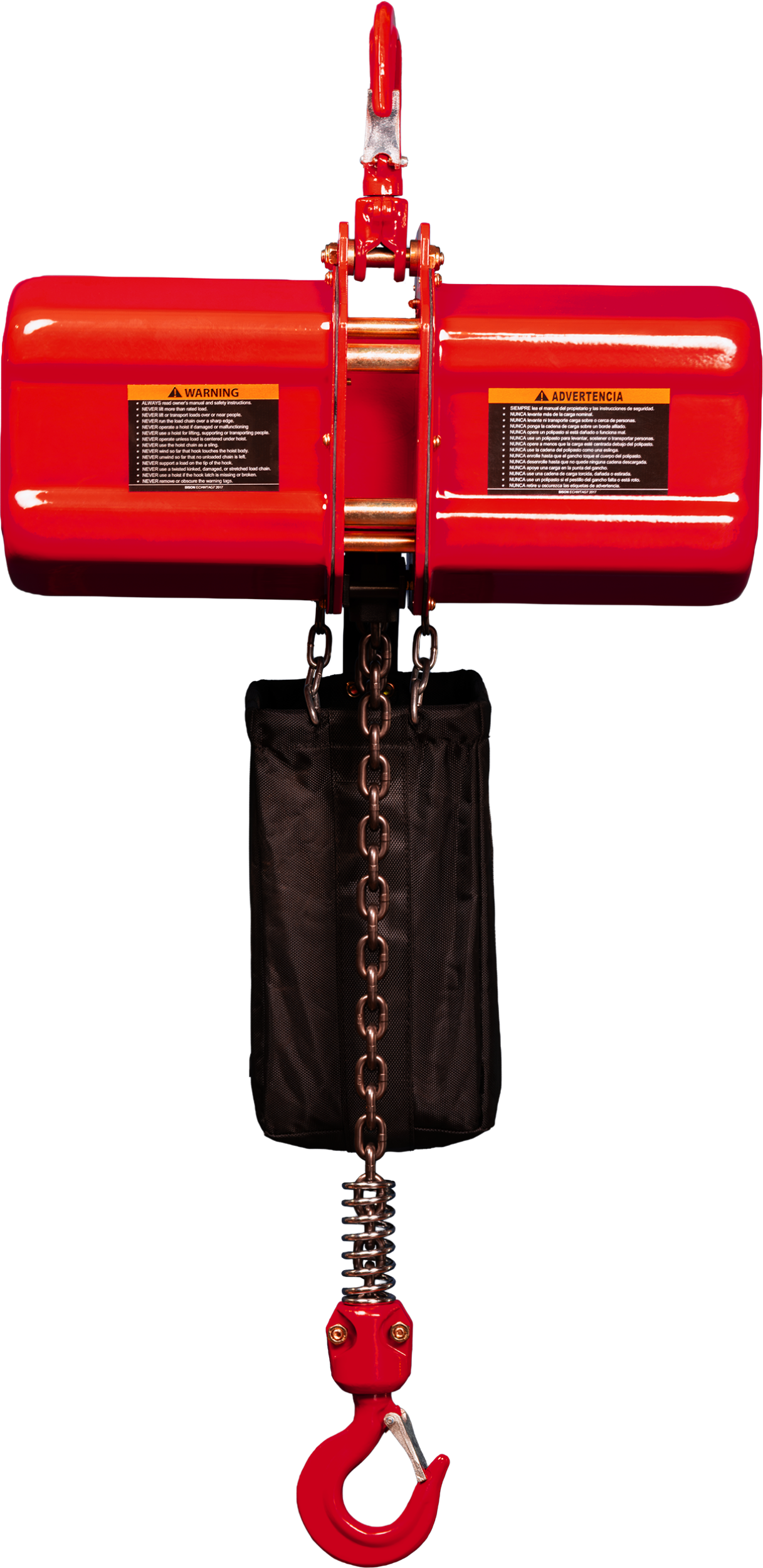

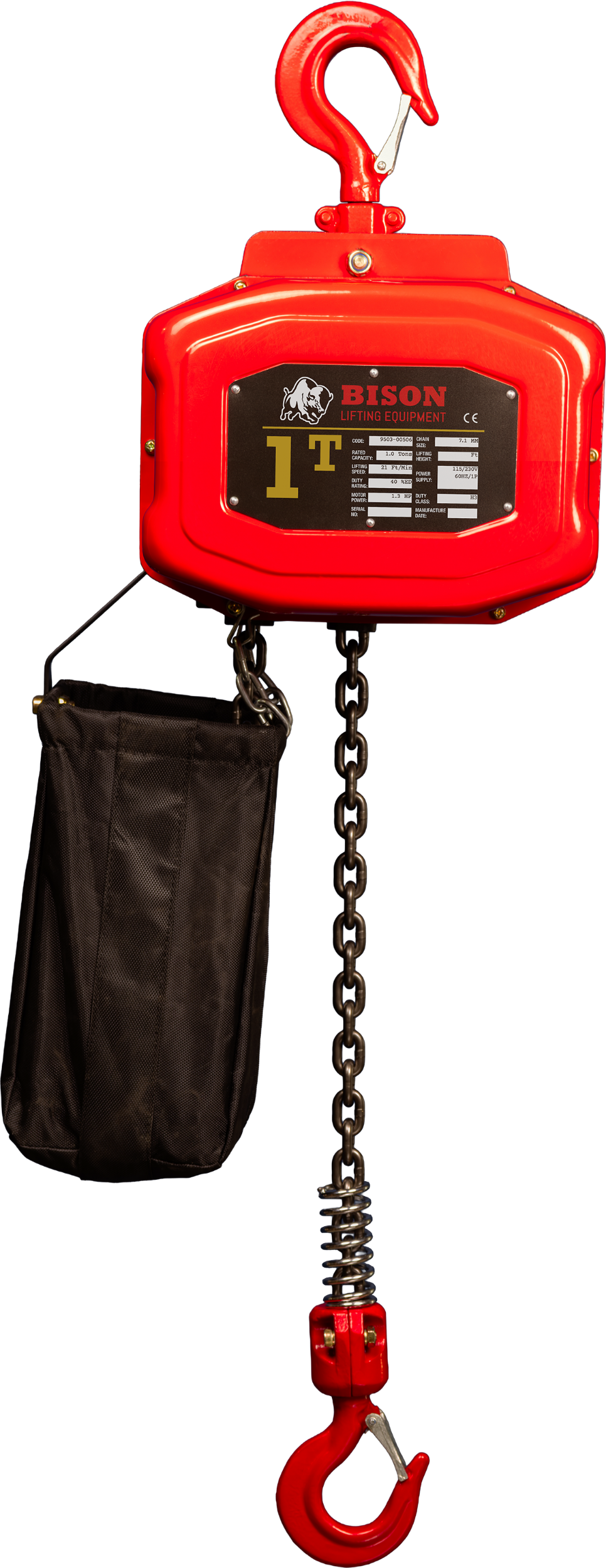

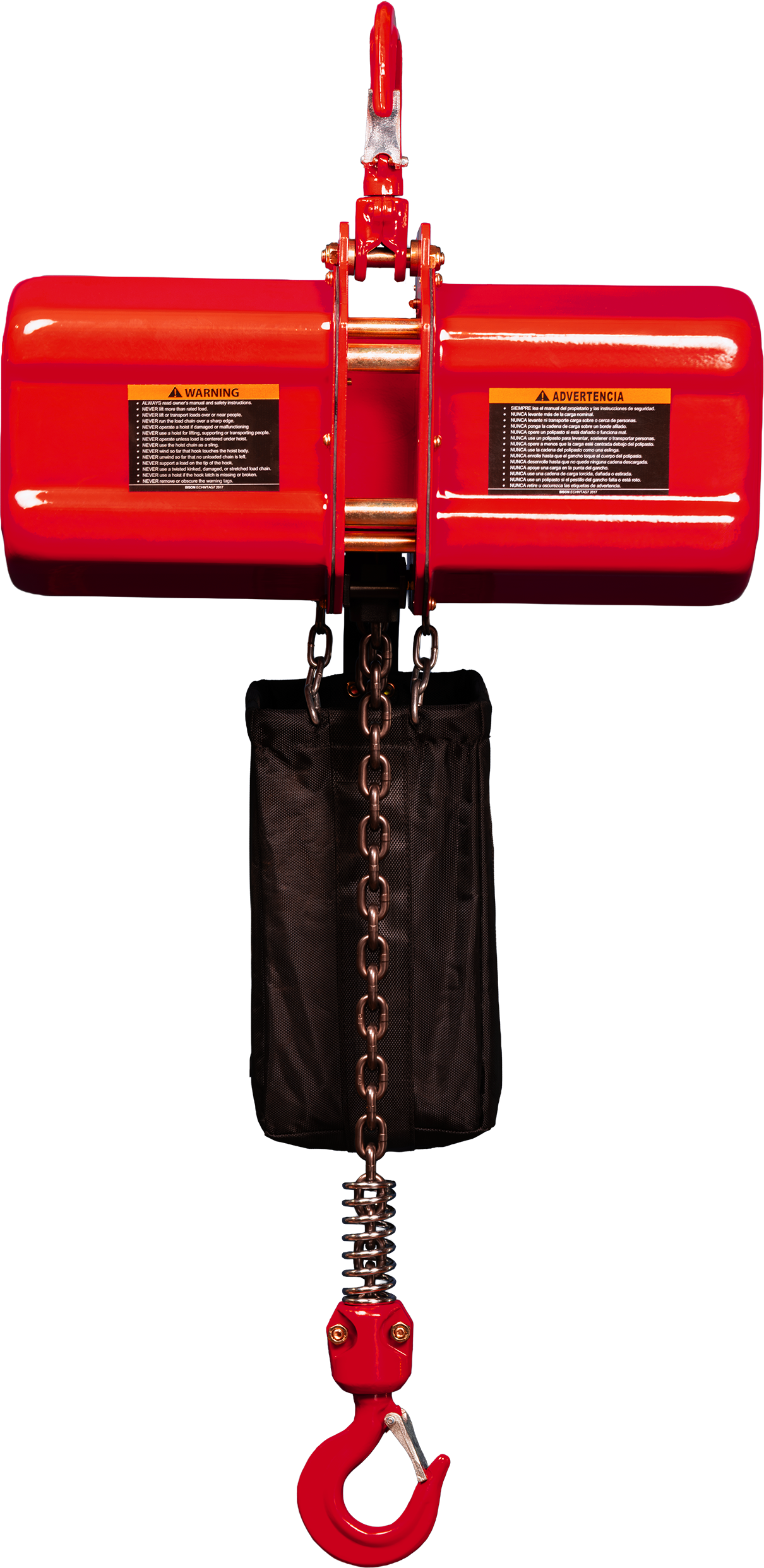

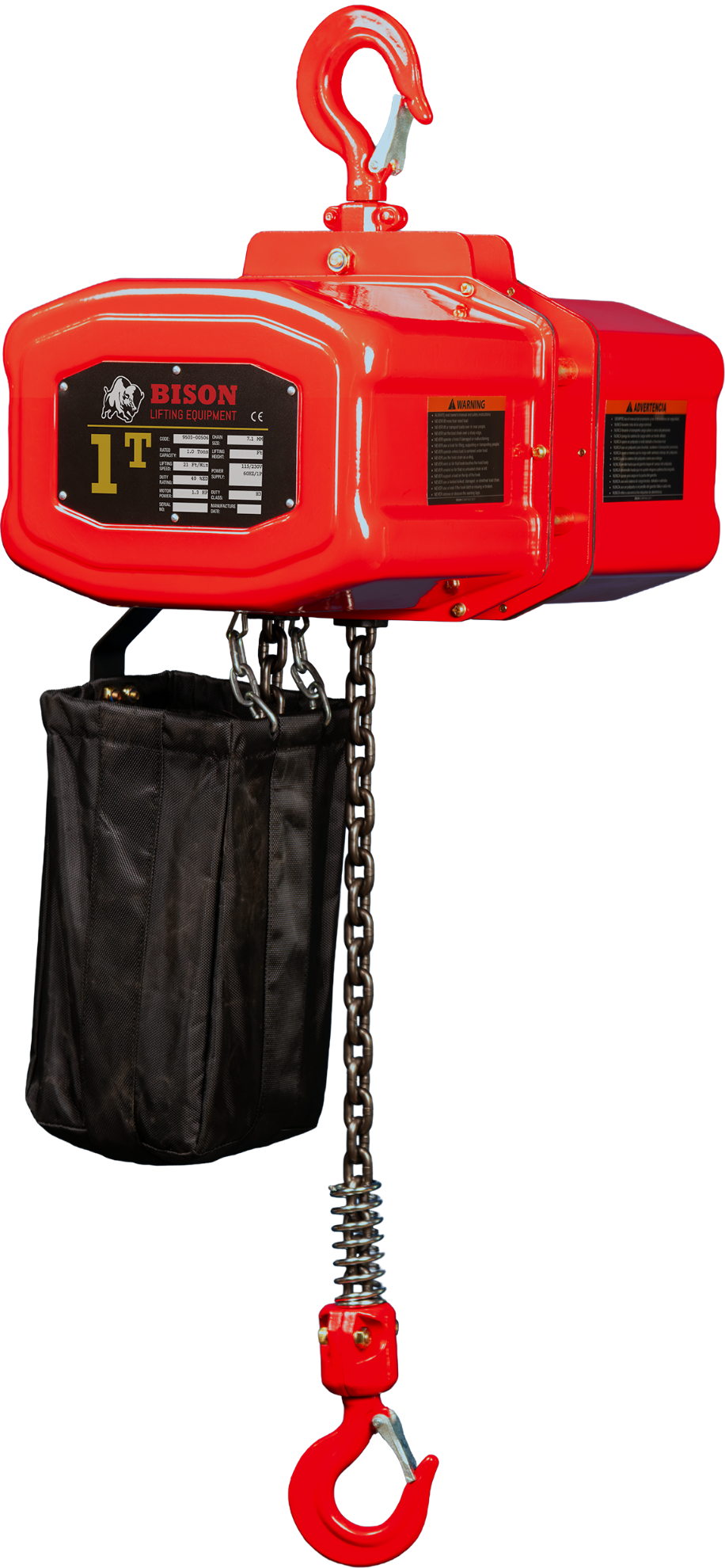

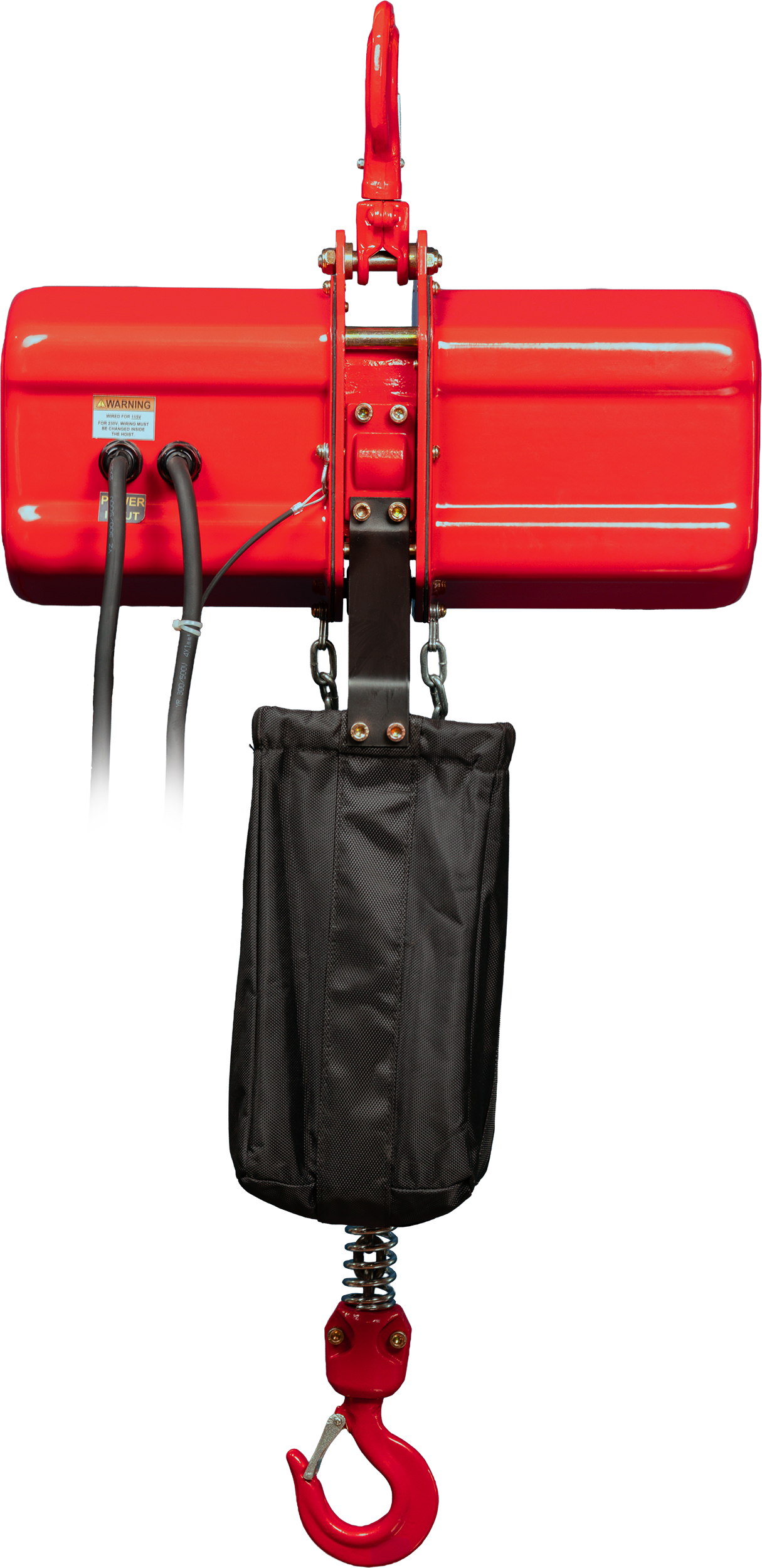

1 Ton Single Phase Hoist

SKU: HH-B010
Delivery date: 1-2 days
*
*

Dual Voltage
All single-phase hoists come standard from the factory wired for 115v power supply. This can easily be adjusted to 230v

Overload Protection (friction clutch)
Prevents operators from exceeding a hoist’s rated lifting capacity.

Operating Conditions
Suitable for environments within -4° to +104° F. Recommended Humidity of 85% or less.

Electromagnetic AC brake
Standard AC brake is designed for a long service life.

Upper/Lower Limit Switches
Mechanical paddle limit switches. Stops the load chain from progressing past its safe limitation.

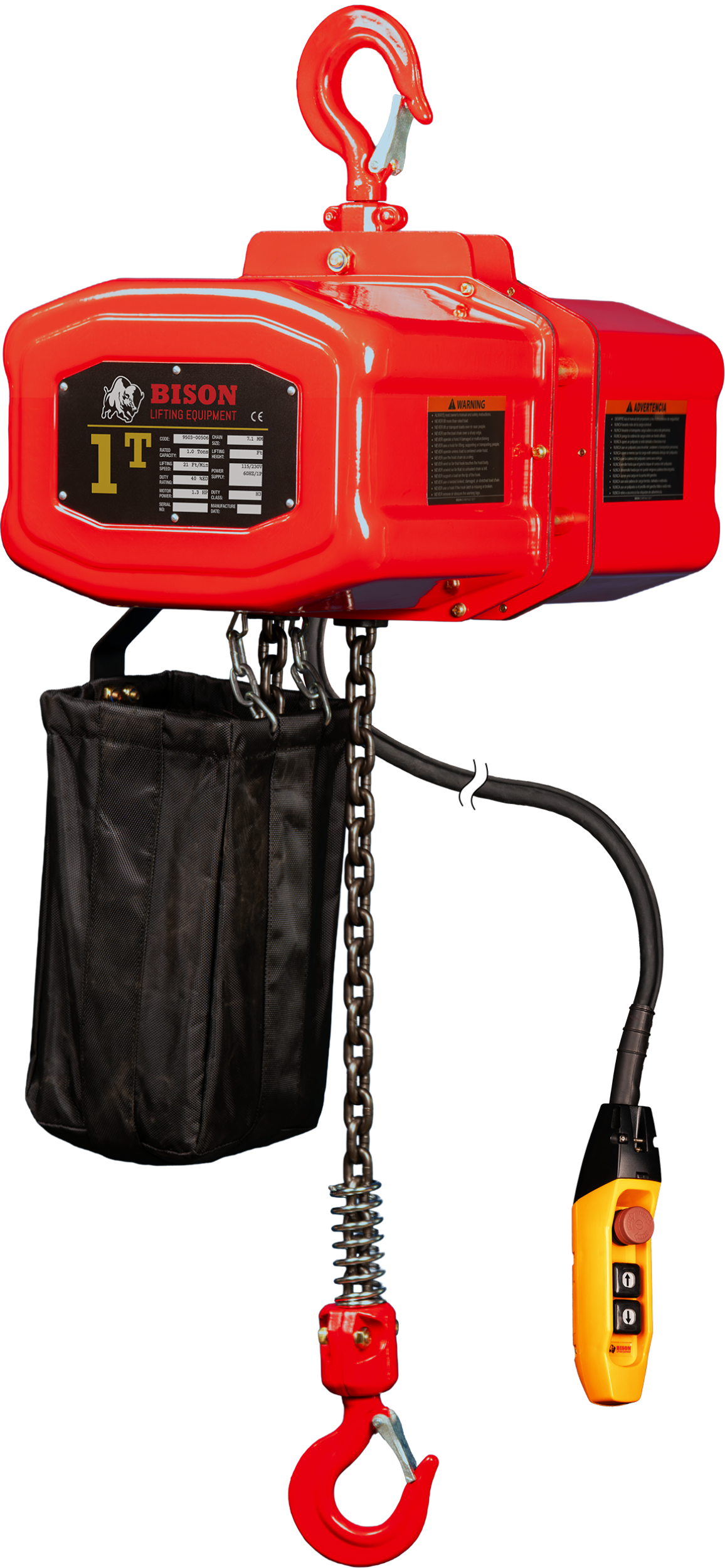

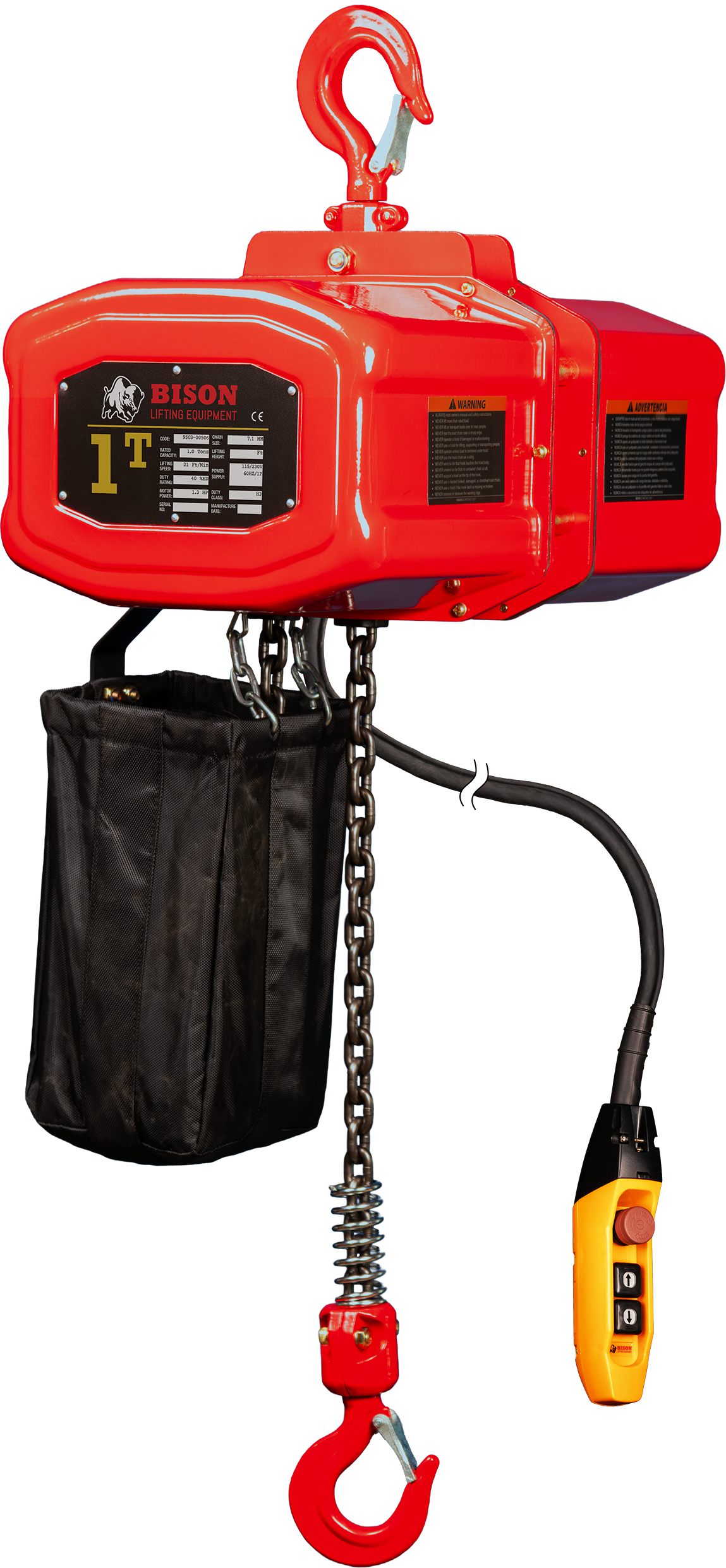

Pendant Control
Modern, ergonomic design. Mainline contactor, red emergency stop push button is standard on all pendants. Pendant Cord includes external strain relief.

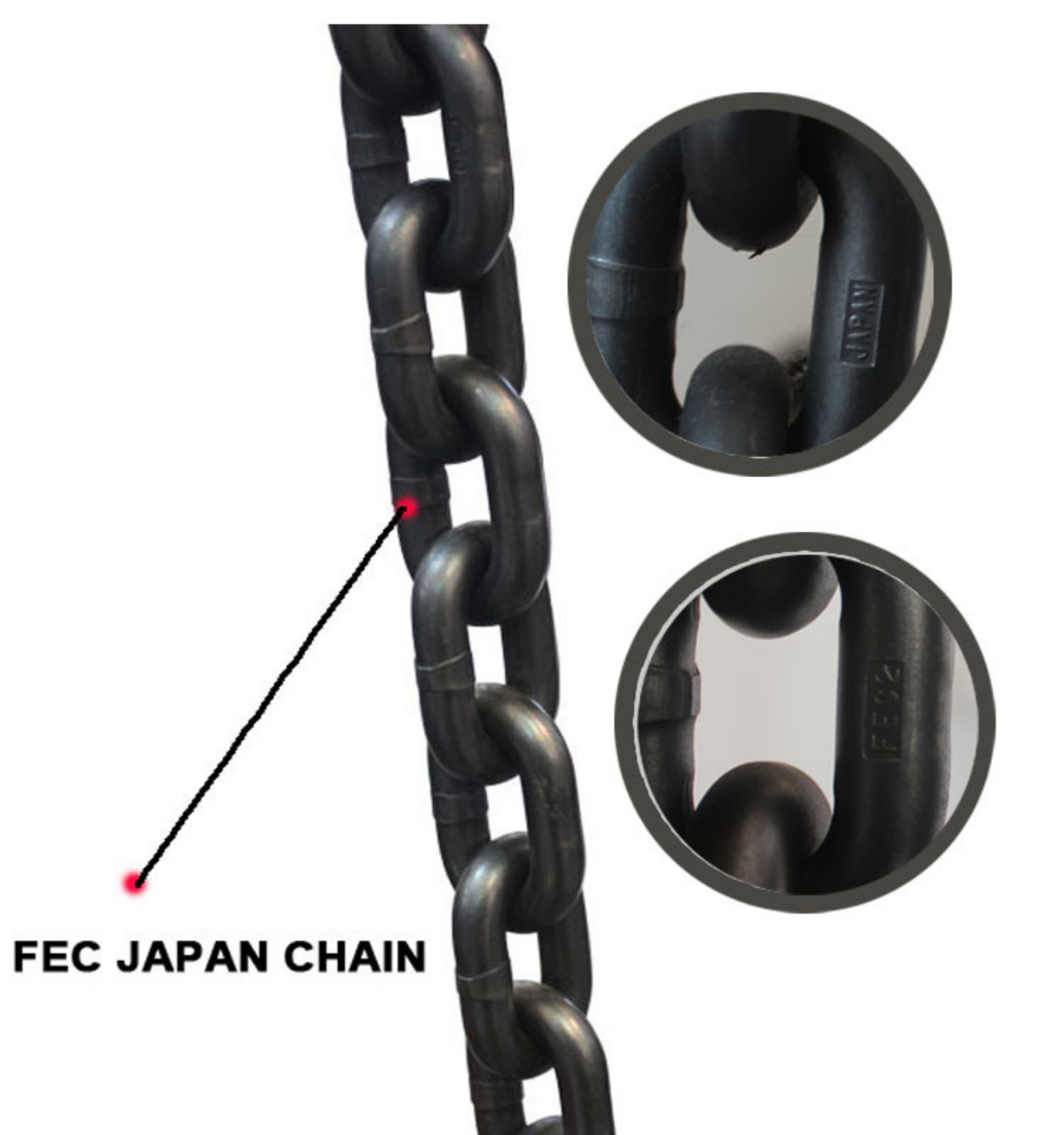

Load Chain
Grade 80, case hardened FEC Japanese Chain.

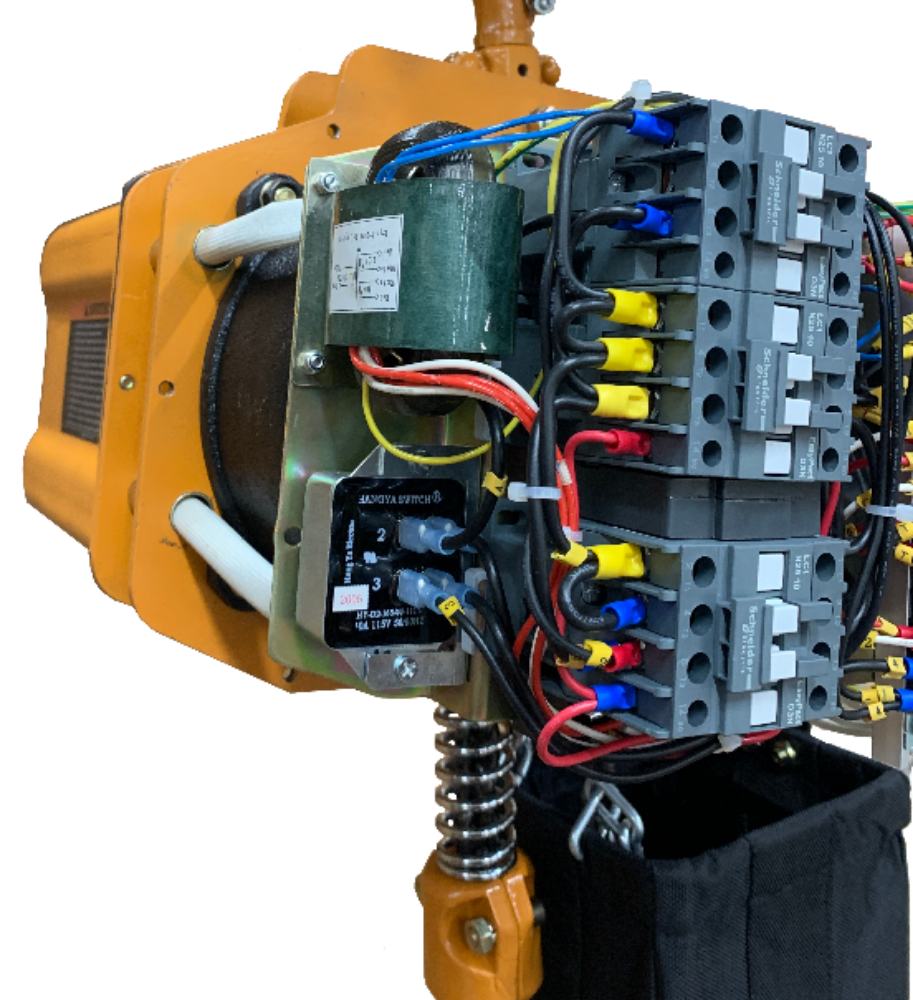

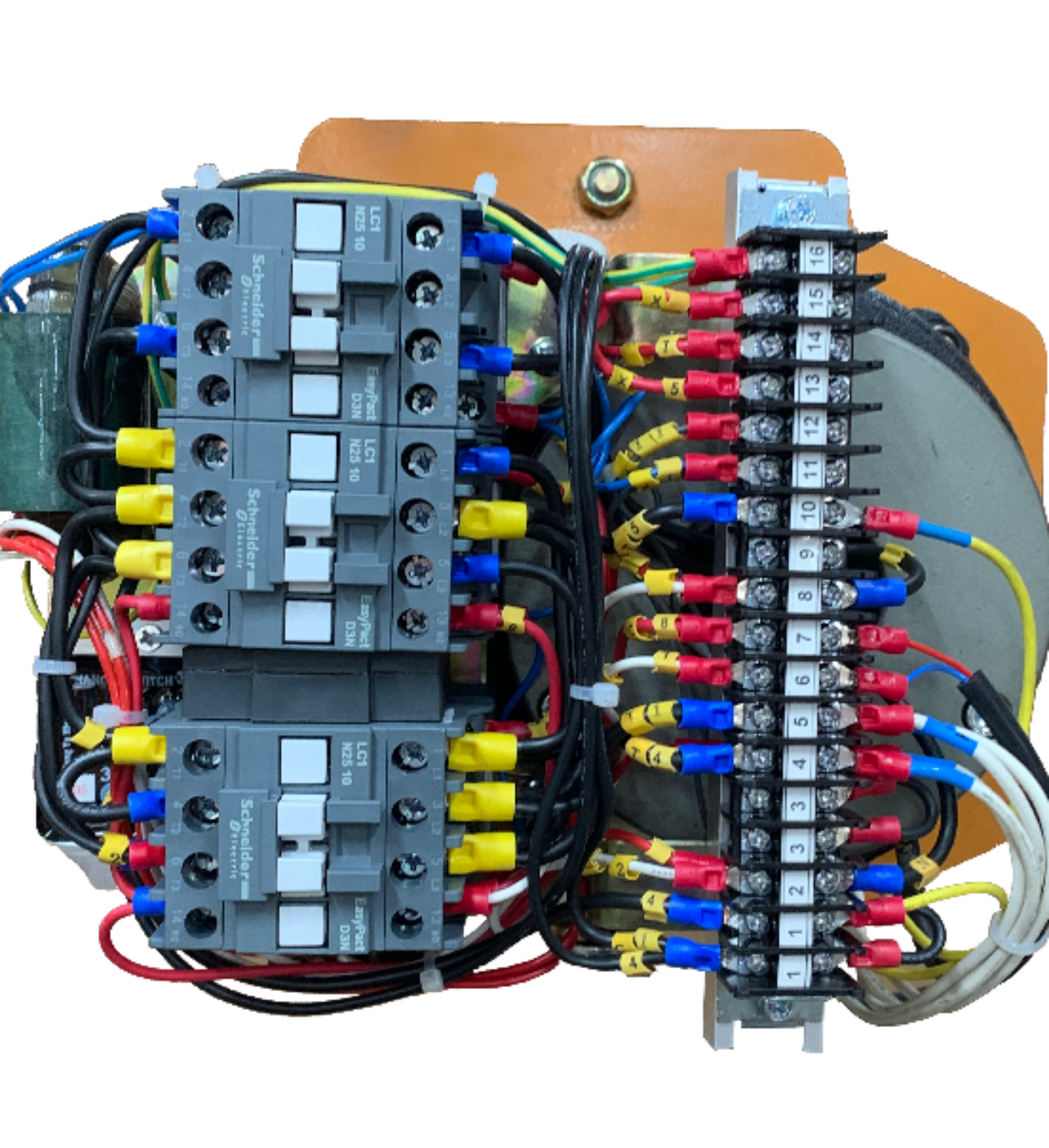

Contactor Controlled

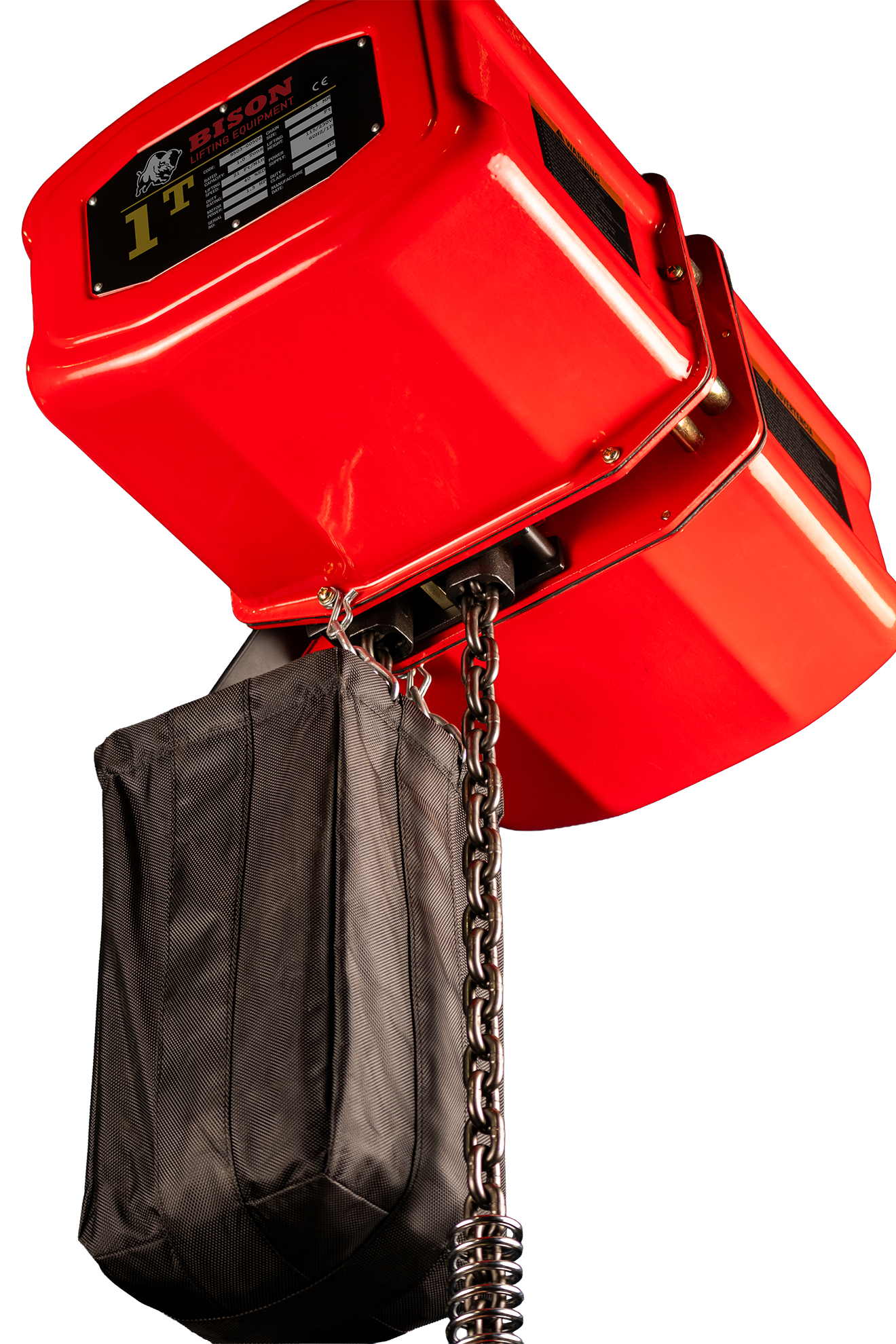

Chain Container
Included with all standard hoists.



Forged Swivel Hook- Notched
Bottom hook rotates 360°. Hooks are notched to securely accommodate the heavy duty cast safety latches.

Standard Voltage
115/230v Single-Phase, 60 Hertz

Ratings
Pendant: IP65 Hoist: IP55

Standard Lift
20 Ft (custom lengths available)

Standard Pendant Cord Length
17 Ft (custom lengths available)

Standard Power Cord Length
15 Ft (custom lengths available)

Control Voltage
24v

Duty Cycle
40% ED

Chain Container
Canvas or plastic container included with all standard hoists.

Capacity Range
1⁄4 – 5 Ton

Hoist Mounting
Rigid hook; manual trolley; motorized trolley






Dual Voltage
All single-phase hoists come standard from the factory wired for 115v power supply. This can easily be adjusted to 230v

Overload Protection (friction clutch)
Prevents operators from exceeding a hoist’s rated lifting capacity.

Operating Conditions
Suitable for environments within -4° to +104° F. Recommended Humidity of 85% or less.

Electromagnetic AC brake
Standard AC brake is designed for a long service life.

Upper/Lower Limit Switches
Mechanical paddle limit switches. Stops the load chain from progressing past its safe limitation.

Pendant Control
Modern, ergonomic design. Mainline contactor, red emergency stop push button is standard on all pendants. Pendant Cord includes external strain relief.

Load Chain
Grade 80, case hardened FEC Japanese Chain.

Contactor Controlled

Chain Container
Included with all standard hoists.



Forged Swivel Hook- Notched
Bottom hook rotates 360°. Hooks are notched to securely accommodate the heavy duty cast safety latches.

Standard Voltage
115/230v Single-Phase, 60 Hertz

Ratings
Pendant: IP65 Hoist: IP55

Standard Lift
20 Ft (custom lengths available)

Standard Pendant Cord Length
17 Ft (custom lengths available)

Standard Power Cord Length
15 Ft (custom lengths available)

Control Voltage
24v

Duty Cycle
40% ED

Chain Container
Canvas or plastic container included with all standard hoists.

Capacity Range
1⁄4 – 5 Ton

Hoist Mounting
Rigid hook; manual trolley; motorized trolley






LIMITATION OF WARRANTIES, REMEDIES AND DAMAGES

12 Month Warranty.

The warranty stated below is given in place of all other warranties, express or implied, of merchantability, fitness for a particular purpose, or otherwise. No promise or affirmation of fact made by any agent or representative of seller shall constitute a warranty by seller or give rise to any liability or obligation.

Seller warrants that on the date of delivery to carrier the goods are free from defects in workmanship and materials.

Seller's sole obligation in the event of breach of warranty or contract or for negligence or otherwise with respect to goods sold shall be exclusively limited to repair or replacement, F.O.B. Seller's point of shipment, of any parts which seller determines to have been defective or if seller determines that such repair or replacement is not feasible, to a refund of the purchase price upon return of the goods to seller.

Any action against seller for breach of warranty, negligence or otherwise, must be commenced within one year after such cause of action occurs. No claim against seller for any defect in the goods shall be valid or enforceable unless buyer's written notice thereof is received by seller within one year from the date of shipment seller shall not be liable for any damage, injury or loss arising out of the use of the goods if, prior to such damage, injury or loss, such goods are (1) damaged or misused following seller's delivery to carrier; (2) not maintained, inspected, or used in compliance with applicable law and seller's written instructions and recommendations; or (3) installed, repaired, altered or modified without compliance with such law instructions or recommendations. Under no circumstances shall seller be liable for incidental or consequential damages as those terms are defined in section 2-715 of the uniform commercial code.

Indemnification and safe operation: Buyer shall comply with and require its employees to comply with directions set forth in instructions and manuals furnished by seller and shall use and require its employees to follow such instructions and manuals and to use reasonable care in the use and maintenance of the goods. Buyer shall not remove or permit anyone to remove any warning or instruction signs on the goods. In the event of personal injury or damage to property or business arising from the use of the goods, buyer shall within 48 hours thereafter give seller written notice of such injury or damage. Buyer shall cooperate with seller in investigating any such injury or damage and in the defense of any claims arising therefrom.

If buyer fails to comply with this section or if any injury or damage is caused, in whole or in part, by buyer's failure to comply with applicable federal or state safety requirements, buyer shall indemnify and hold seller harmless against any claims, loss or expense for injury or damage arising from the use of the goods.
