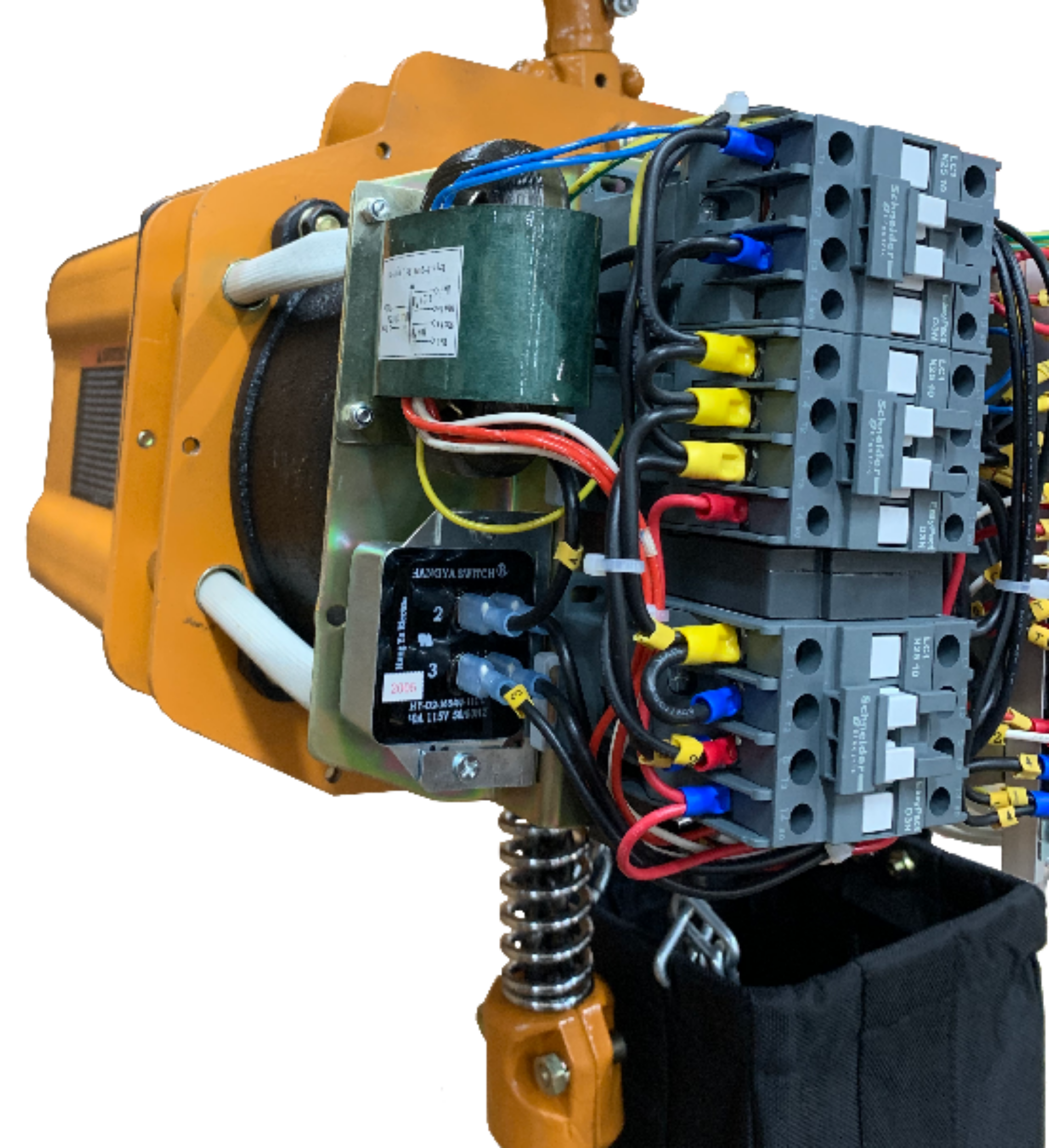

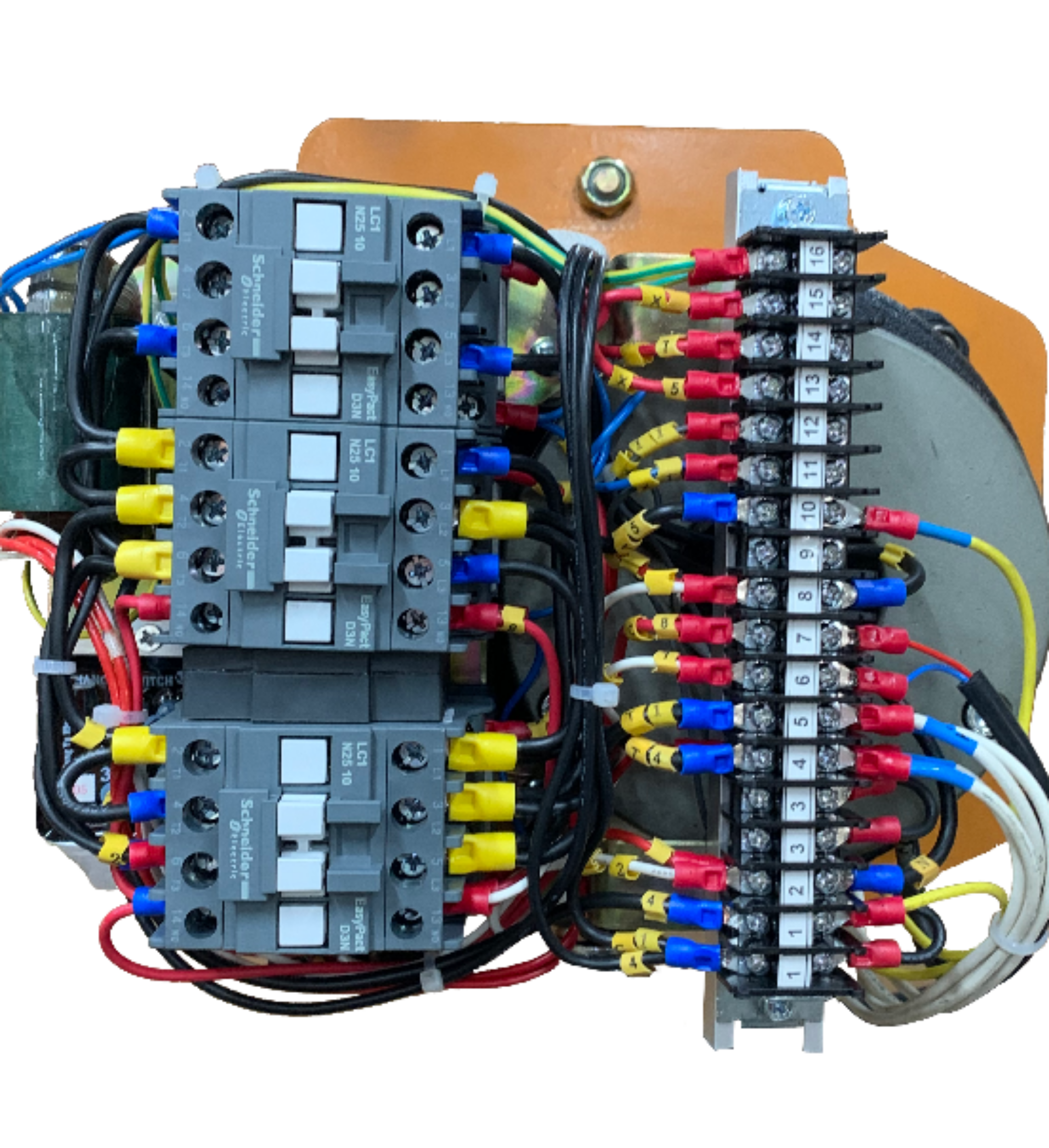

All single-phase hoists come standard from the factory wired for 115v power supply. This can easily be adjusted to 230v
Overload Protection (friction clutch)
Prevents operators from exceeding a hoist’s rated lifting capacity.
Suitable for environments within -4° to +104° F. Recommended Humidity of 85% or less.
Electromagnetic AC brake
Standard AC brake is designed for a long service life.
Upper/Lower Limit Switches
Mechanical paddle limit switches. Stops the load chain from progressing past its safe limitation.

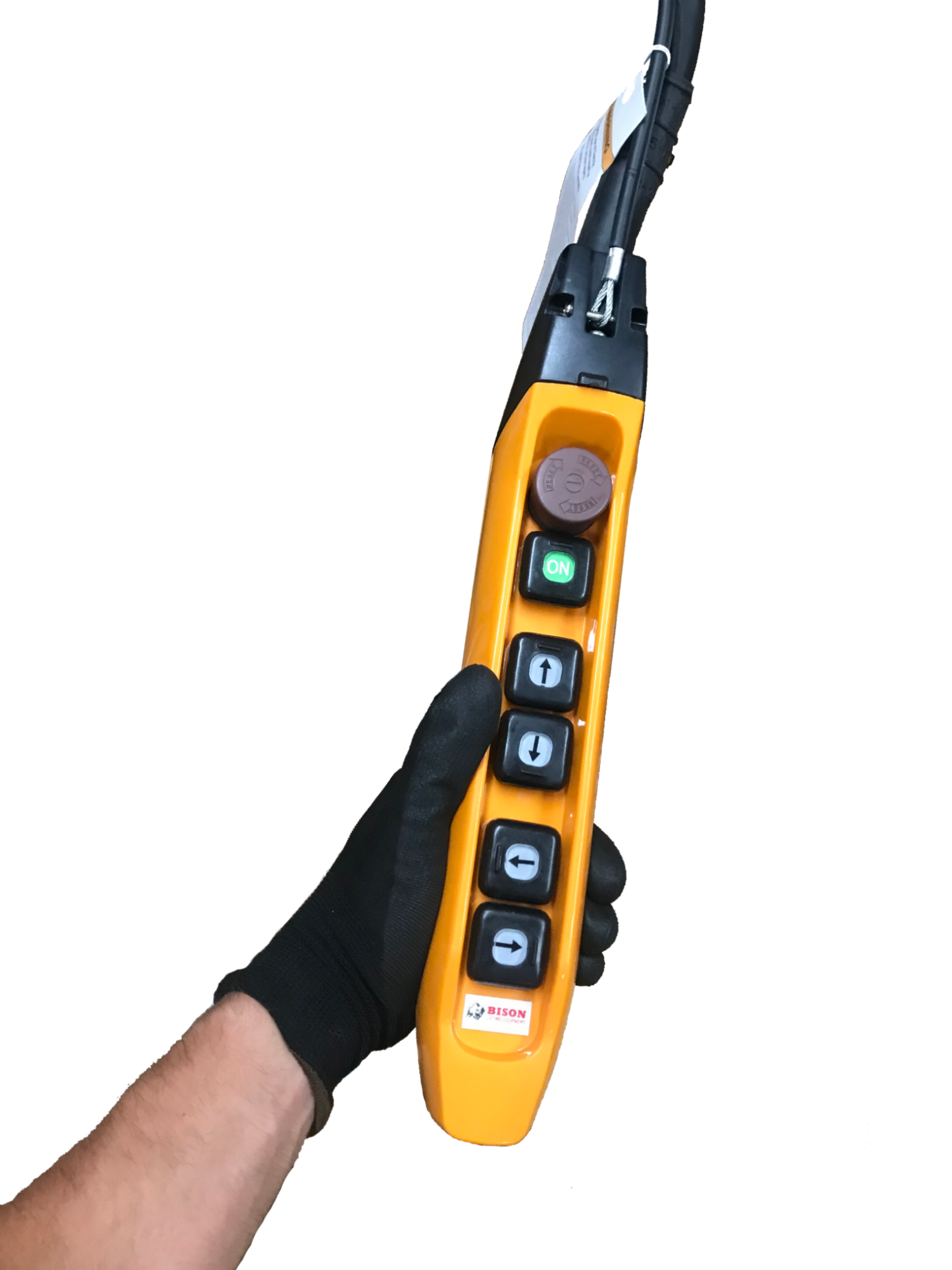

Modern, ergonomic design. Mainline contactor, red emergency stop push button is standard on all pendants. Pendant Cord includes external strain relief.

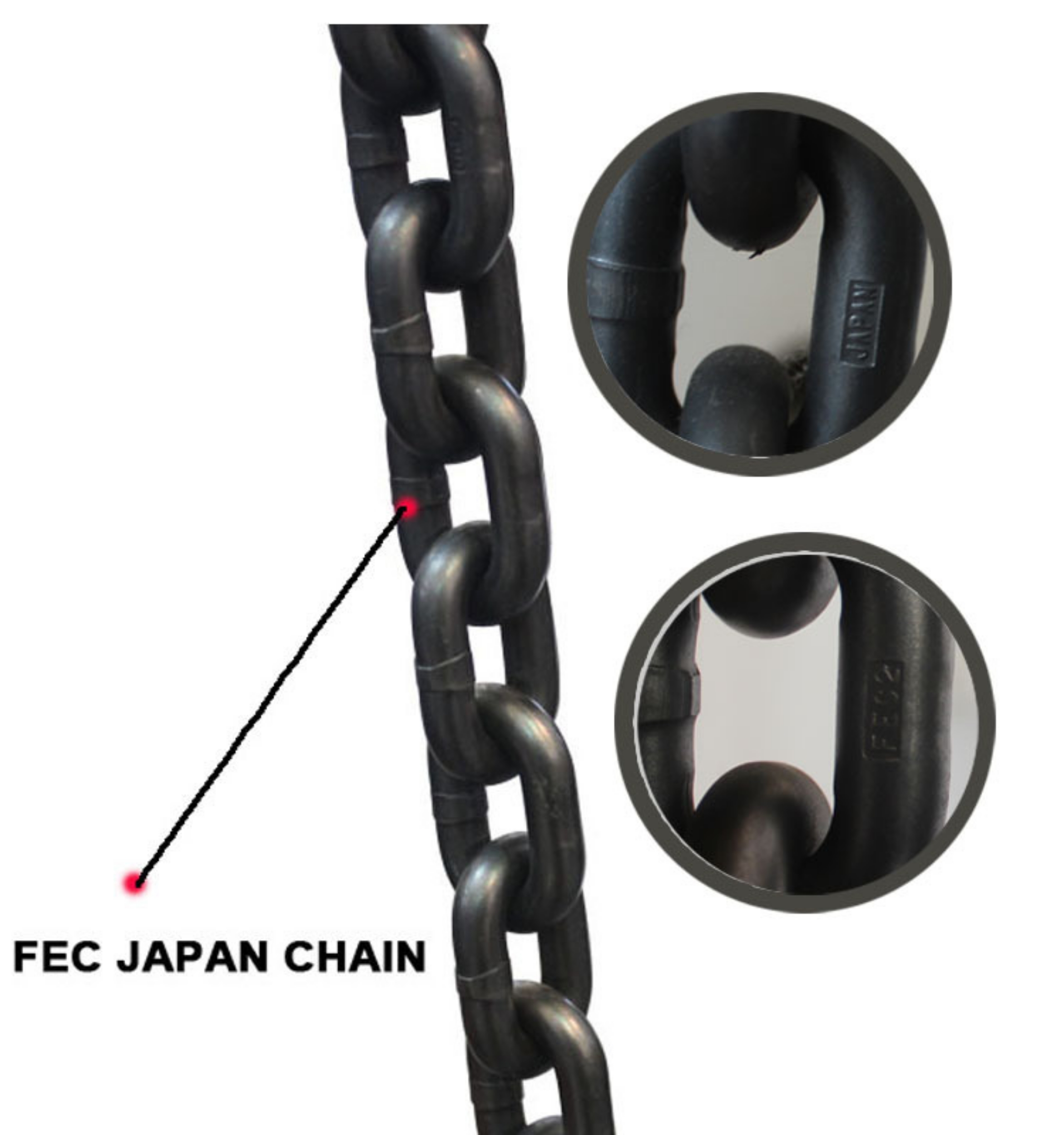

Grade 80, case hardened FEC Japanese Chain.
Included with all standard hoists.
Forged Swivel Hook- Notched
Bottom hook rotates 360°. Hooks are notched to securely accommodate the heavy duty cast safety latches.
115/230v Single-Phase, 60 Hertz
Pendant: IP65 Hoist: IP55
20 Ft (custom lengths available)
Standard Pendant Cord Length
17 Ft (custom lengths available)
Standard Power Cord Length
15 Ft (custom lengths available)
Canvas or plastic container included with all standard hoists.
1⁄4 – 5 Ton

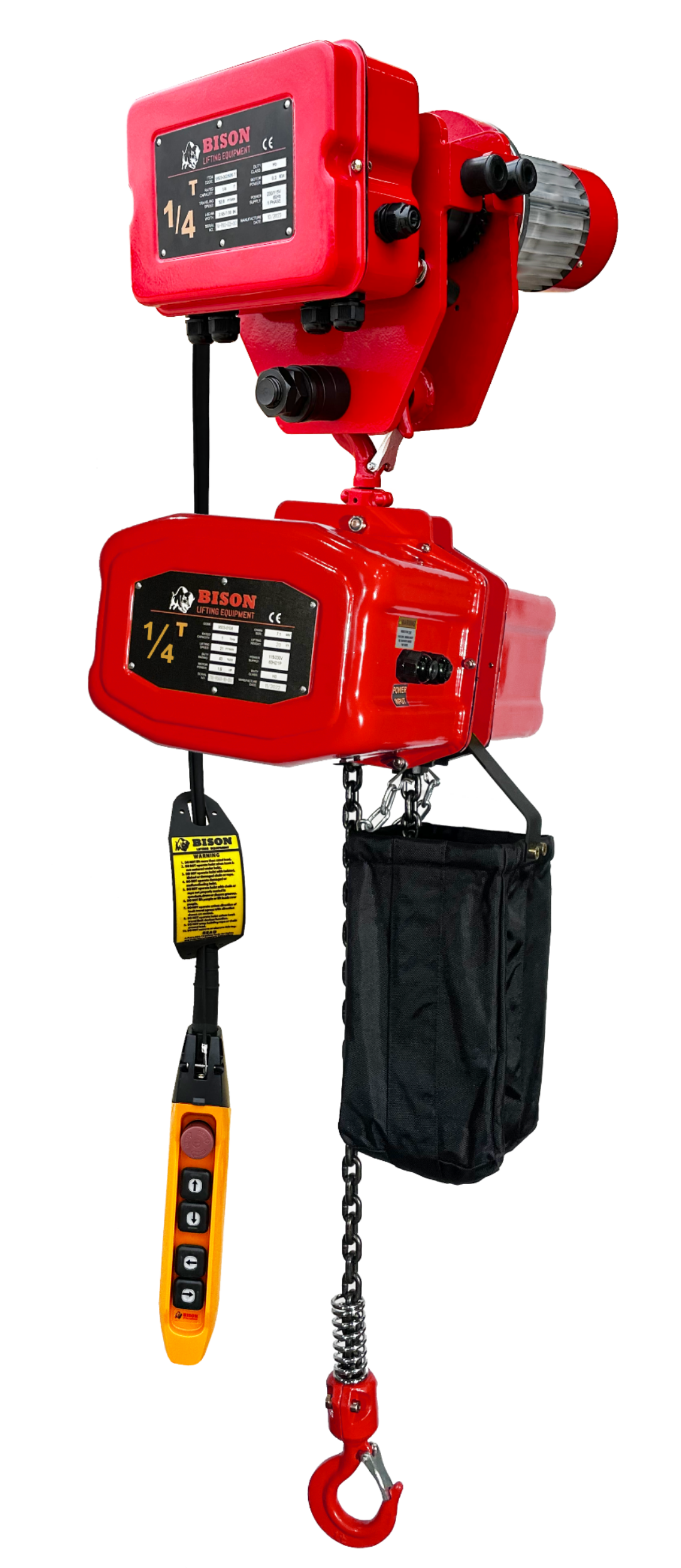

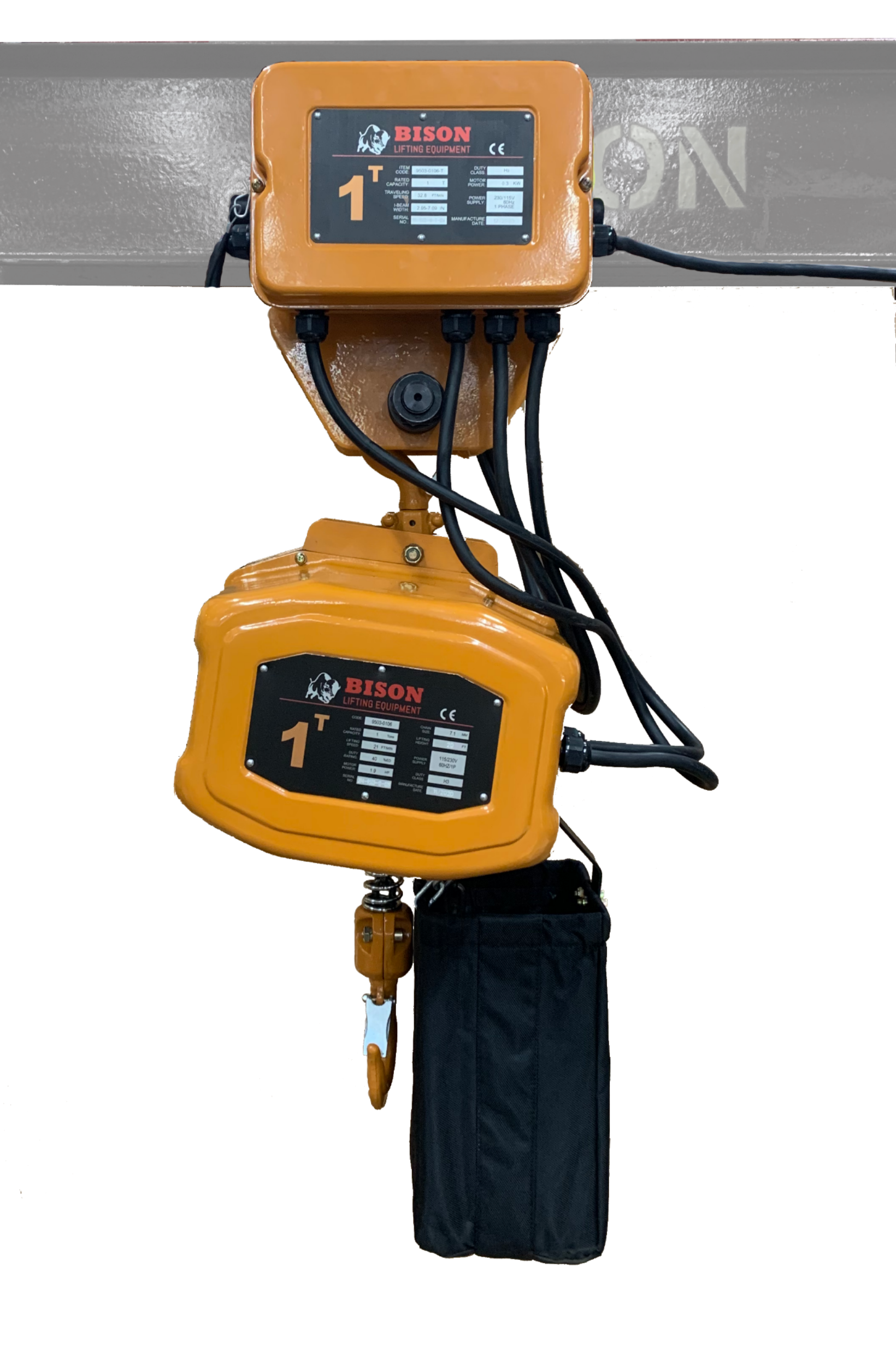

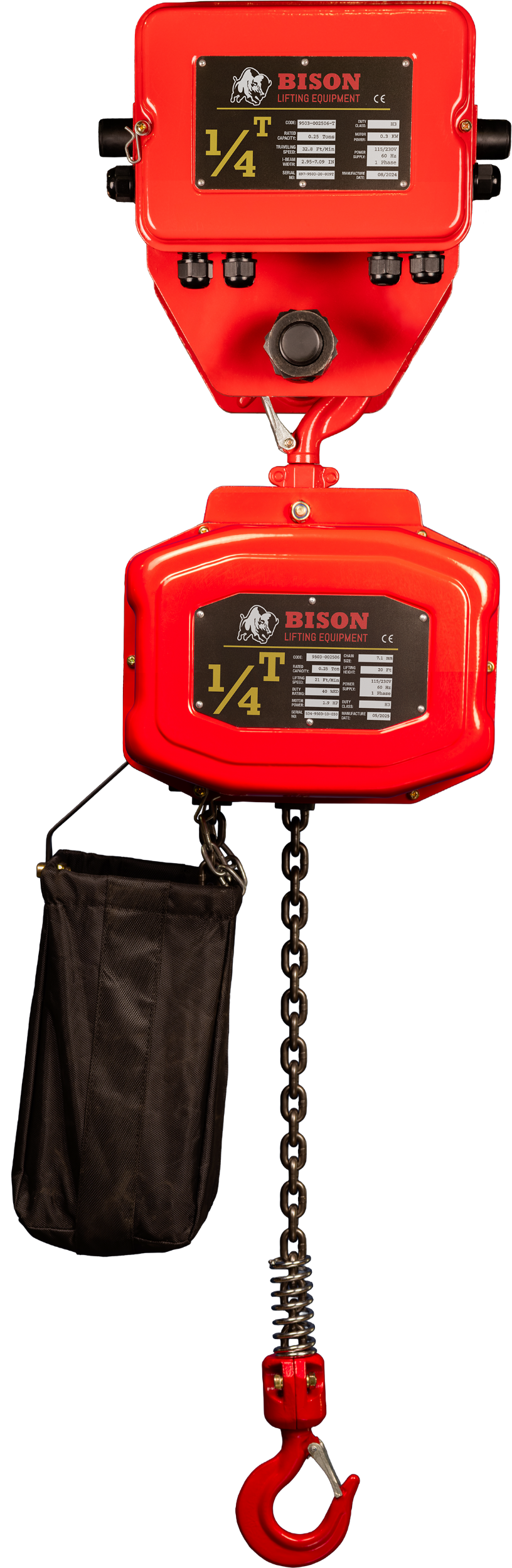

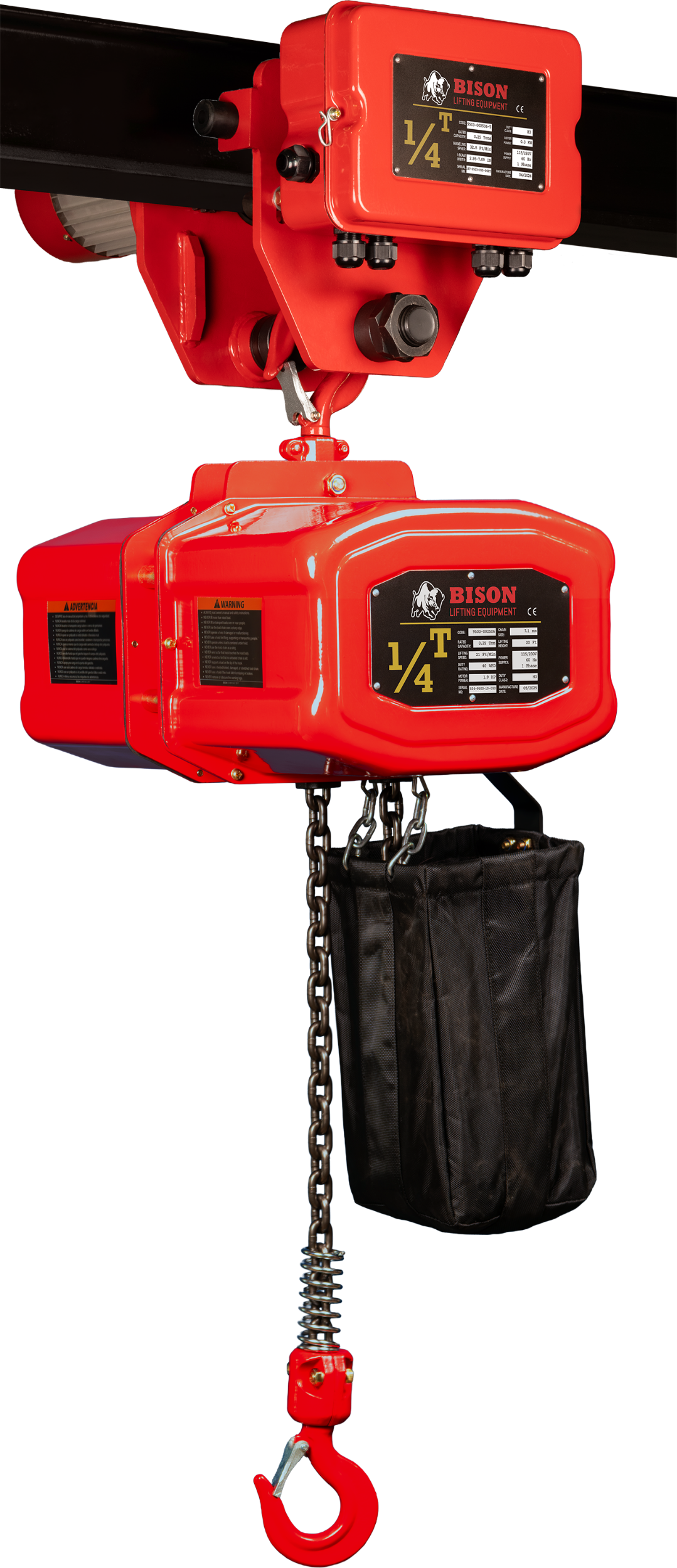

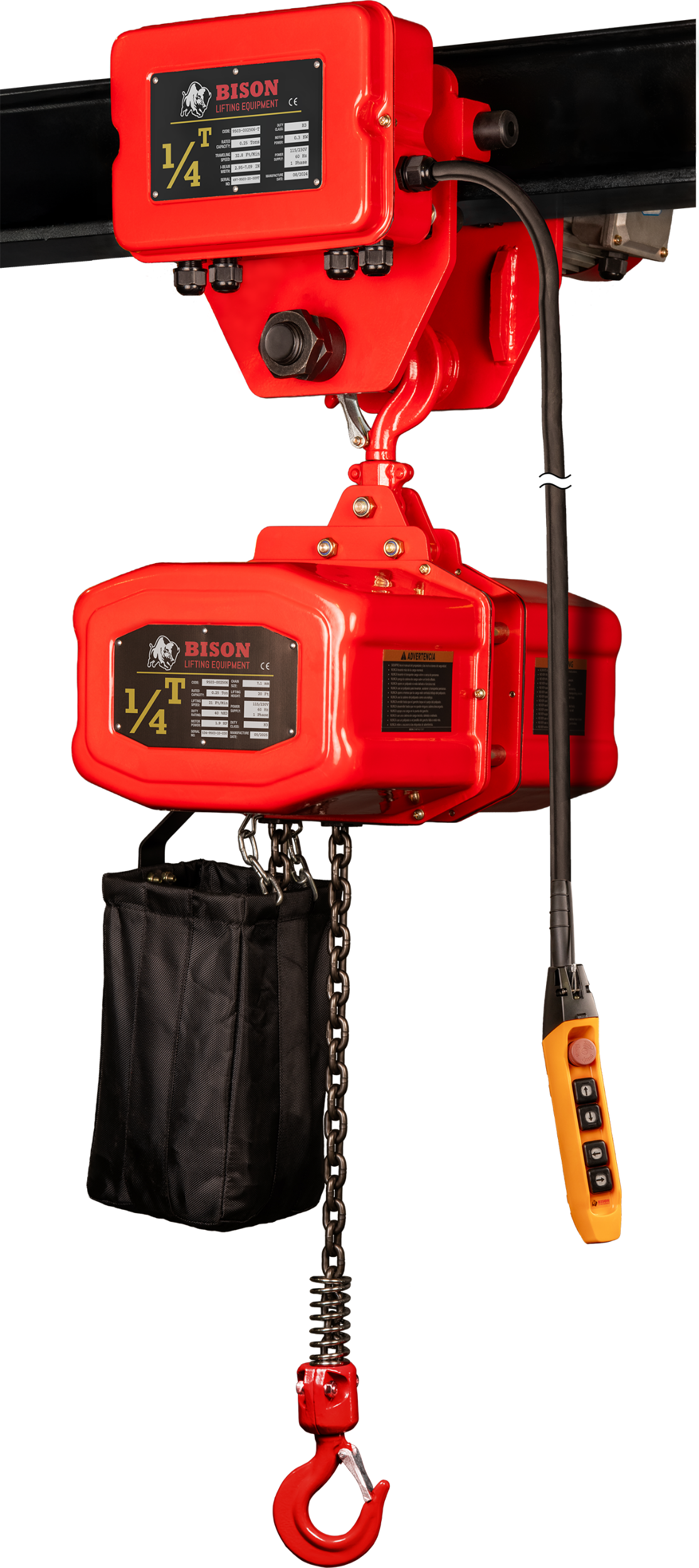

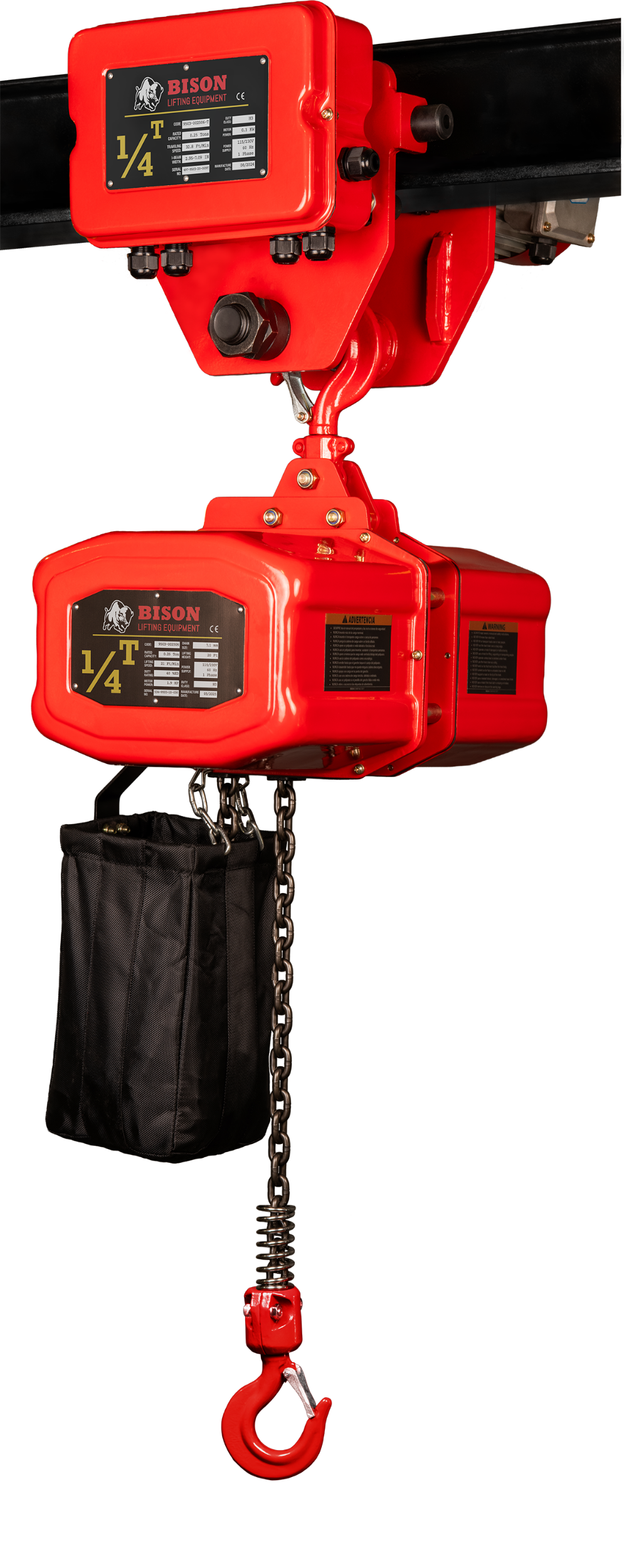

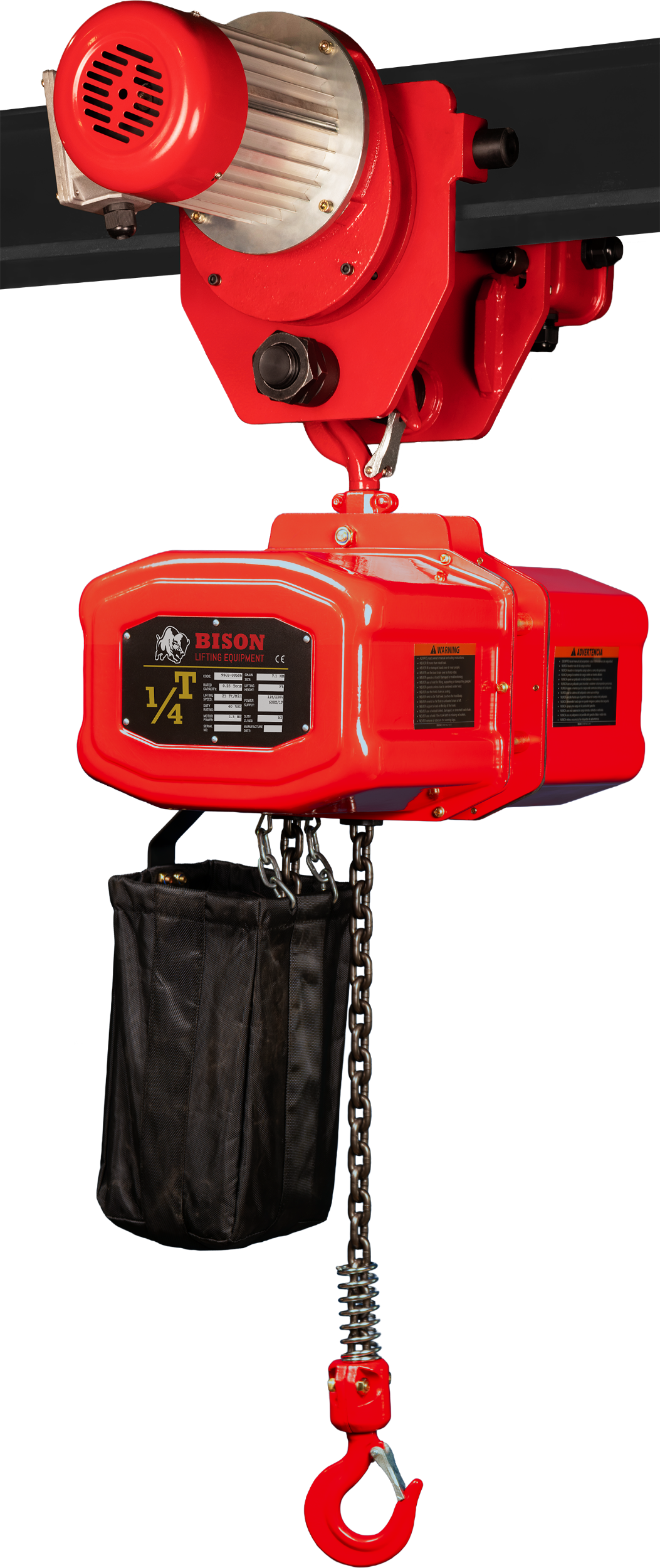

Rigid hook; manual trolley; motorized trolley
